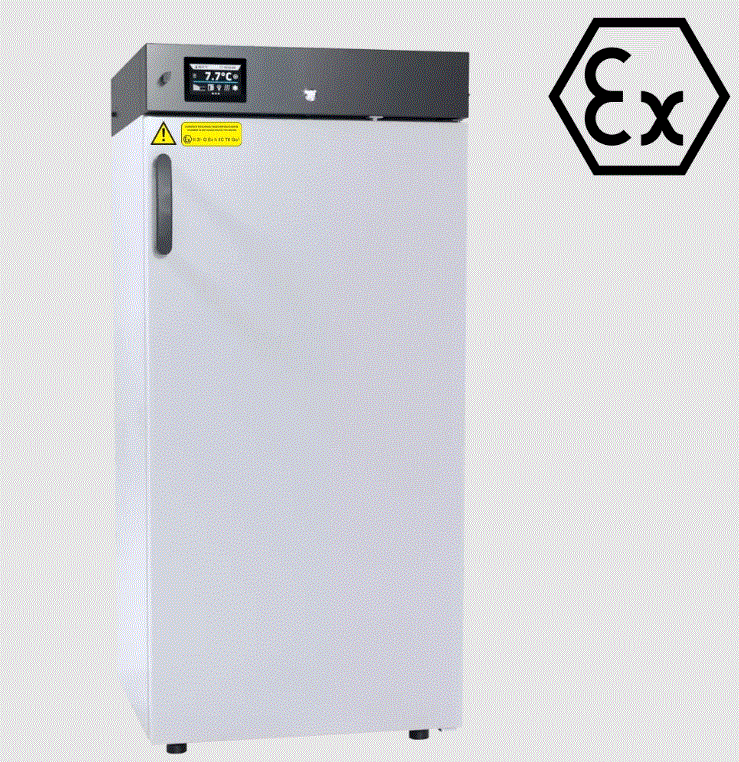

CHL4 Smart ATEX - Laboratory refrigerator / Medicine refrigerator, 250 liter

Description

CHL4 Smart ATEX – Laboratory refrigerator / Medicine refrigerator, 250 liter

Standard equipment of CHL 4 ATEX

temperature range 0…+15°C
chamber capacity 250 liters
working capacity 203 liters
quality control protocol (in + 4°C)
instruction manual in English and menu in various languages
open door alarm
LAN port and USB port
door lock
stainless steel wire shelves (INOX)
full external doors
chamber in explosion-protected design ATEX II 3/- G Ex h IIC T6 Gc/- (according to ATEX Directive 2014/34/EU)
LabDesk software for downloading data to computer (optional)
available models: C (comfort), P (premium)
available controllers: Smart

Smart options
Order number: */P INOX	Stainless steel wire shelf INOX
Order number: */PP	Perforated shelf
Order number: */PW	Reinforced shelf
Order number: QLK*	Castors
Order number: *PLUS	Automatic defrosting function

for the safe storage of chemical samples which may form an explosive atmosphere

CHL ATEX are specialized laboratory refrigerators designed for the safe storage of chemical samples that may create an explosive atmosphere. They are designed in accordance with the requirements of ATEX Directive 2014/34/EU, for environments classified as Zone 2.

The refrigerator chamber is made explosion-proof and marked as II 3/- G Ex h IIC T6 Gc/-. It features non-sparking components and explosion-proof construction of the Ex h type, compliant with the EN ISO 80079-36 standard, which eliminates potential ignition sources under normal operating conditions.

The chamber construction has been developed to minimize the risk of ignition and explosion, in accordance with the requirements of ATEX Directive 2014/34/EU and the relevant harmonized standards. This is a key element in ensuring safety in explosion-hazardous zones, which – according to ATEX Directive 1999/92/EC – must be defined by the employer in the workplace risk assessment.

CHL ATEX (Ex) Laboratory Refrigerators: Safe Storage of Samples that May Create an Explosive Atmosphere

CHL ATEX devices feature explosion-proof (Ex) chambers II 3/- G Ex h IIC T6 Gc/- in accordance with ATEX directive markings.

Labteamet_etykieta-chl-smart-atex-pol-eko

Key Safety Features (according to the ATEX label):

II: device intended for all explosion-hazardous areas except underground mines (Group II)
3/-: category applies only to the interior of the refrigerator chamber, meeting category 3 requirements for zone 2 explosive atmospheres.
“/-” means that the device’s exterior is not intended for operation in explosive hazard zones.
G: type of explosive atmosphere – gas
Ex: explosion-proof design, in accordance with ATEX Directive (2014/34/EU) and relevant standards
h: non-electrical device, the interior of the refrigerator chamber is protected by constructional safety “c” in accordance with EN ISO 80079-36
IIC: gas explosion group, device approved for operation in the presence of highly explosive gases such as hydrogen or acetylene
T6: device temperature class – the interior of the cooling chamber is safe for substances with an auto-ignition temperature of at least 85 °C
Gc/-: Protection level of the device chamber (EPL Gc) according to the Ignition Hazard Assessment. Ensures safe operation of the chamber interior in a zone 2 gas explosive atmosphere. The symbol “/-” means that the exterior of the device has no assigned EPL and is not intended for use in Ex zones.

Operating Range and Precision:

CHL ATEX laboratory refrigerators with explosion-proof chambers feature a cooling system with forced air circulation, ensuring stable and uniform conditions inside the chamber. They allow sample storage within a temperature range of 0 °C to +15 °C. The device is controlled by a precise SMART controller, guaranteeing high stability and uniformity of the set temperature.

The CHL ATEX (Ex) laboratory refrigerator with an explosion-proof chamber is a reliable and safe solution for storing samples that may create an explosive atmosphere.

Thermal stability and cooling precision

Forced air circulation ensures uniform conditions throughout the chamber. The operating range is 0 °C to +15 °C, maintained by a precise SMART controller with a clear interface, alarms, and data logging.

Models and their features

Model	Capacity (chamber / usable)	Standard Equipment	Application
CHL 1 ATEX	70 l / 55 l	ATEX chamber, open-door alarm, LAN/USB ports, lock, INOX shelves, LabDesk software	Small quantities of samples in Zone 2
CHL 2 ATEX	150 l / 122 l	As above, larger capacity, SMART control, data logging	Larger scale testing
CHL 3 ATEX	200 l / 163 l	Uniform temperature distribution, alarms, multilingual menu	Medium-scale applications
CHL 4 ATEX	250 l / 203 l	4.3″ touch panel, stability ±0.4 °C, uniformity ±0.8 °C, INOX options	Large laboratories
CHL 5 ATEX	300 l / 243 l	Full SMART package, LabDesk, advanced alarms and event logging	High-performance use in Zone 2
CHL 6 ATEX	400 l / 324 l	Largest capacity, INOX shelves, communication ports, access security	Storage of large batches

Functionalities and added value

SMART control – intuitive panel, visual and acoustic alarms, history and data export.
LabDesk software – convenient archiving and analysis of operating parameters.
High-quality workmanship – INOX shelves, lockable doors, solid insulation.
Environmental aspect – modern refrigerants with low GWP and efficient PU insulation.

Why choose CHL ATEX?

Safety – certified ATEX chamber minimizes the risk of ignition.
Precision – stable conditions thanks to forced air circulation and SMART control.
Flexibility – wide range of capacities and configurations.
Control and communication – alarms, data logging, LAN/USB ports.
Durability – premium materials and refined construction.

TECHNICAL DATA
air convection	forced
chamber capacity [l]	250
working capacity [l]	203
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+15
temperature resolution every … [°C]	0,1
temperature fluctuation at 4°C [+/-°C]*	0,4
temperature variation at 4°C [+/-°C]*	0,8
CHAMBER
door type	solid
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished

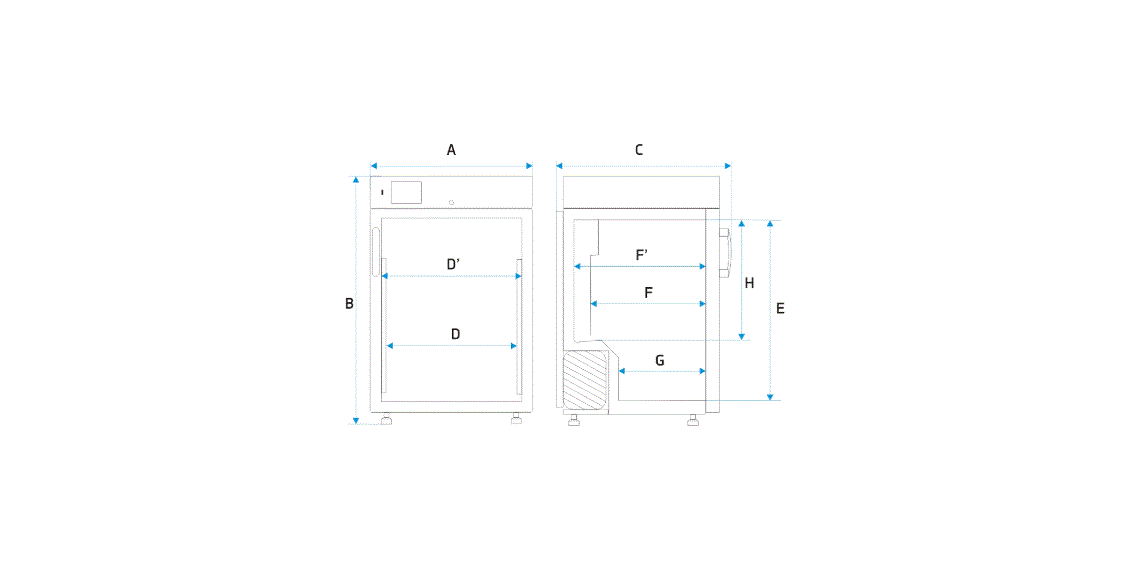

overall dims [mm] /1/
width A	620
height B	1300
depth C	650
internal dims [mm]
width D	480
width D’	520
height E	1060
depth F	420
depth F’	480
depth G	320
height H	840

shelves (standard \| max)	4 \| 6
max shelf workload [kg] /2/	10
max unit workload [kg]	50
weight [kg]	82
ELECTRICAL PARAMETERS
voltage	230V 50/60Hz
nominal power [W]	250
compliance with ATEX directive	chamber in explosion-protected design ATEX II 3/- G Ex h IIC T6 Gc/-
refrigerant	R1234ze / GWP=7
warranty	24 months
manufacturer	POL-EKO^®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
