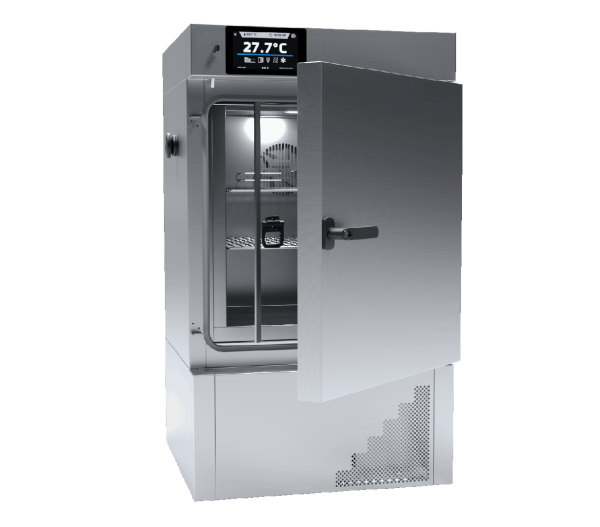

Climatic chamber / Climatic cabinet, 109 liters
This product is available in: 🇸🇪, 🇩🇰, 🇳🇴.
Call 042-300 91 30 or email info@labteamet.com
KKS climatic chambers are modern devices designed for demanding laboratory and industrial applications. With an advanced control system and a wide range of temperature and humidity regulation, they provide stable and precise conditions for research and stability testing.
The KKS chambers are equipped with an intuitive SMART PRO controller, enabling precise parameter regulation, test cycle programming, and remote condition monitoring.
Thanks to high-quality materials, including acid-resistant stainless steel (DIN 1.4301), the devices are not only durable but also easy to maintain hygiene.
The KKS climatic chambers with steam humidifier do not emit ultrasounds and therefore allow insects breeding (e.g. Drosophila melanogaster). Compared to the KK chambers, they feature an extended temperature and humidity range and can be used for tests of electronics, plastic or building materials.
| Order number: */P INOX | Stainless steel wire shelf INOX |
| Order number: */PP | Perforated shelf |
| Order number: */PW | Reinforced shelf |
| Order number: KUW GN*/* | Stainless steel cuvettes |
| Order number: GNZ | Internal socket |
| Order number: BRT/*/L or IQ/OQ/PQ | Calibration and IQ, OQ, PQ qualification |
| Order number: BPP 12 | Battery backup for display |
| Order number: PORT ALARM | Dry alarm contact |
| Order number: RFID LOCK (SMART PRO) | RFID LOCK (SMART PRO) |
| Order number: LANK | LAN cable |
| Order number: OCZ/20 | Non-standard access port 20 mm |
| Order number: OCZ/30 | Additional access port 30 mm |
| Order number: OCZ/60 | Non-standard access port 60 mm |
| Order number: OCZ/100 | Non-standard access port 100 mm |
| TECHNICAL DATA | |
| air convection | forced |
| chamber capacity [l] | 109 |
| working capacity [l] | 109 |
| controller | microprocessor PID |
| display | 7″ full colour touch screen |
| TEMPERATURE AND HUMIDITY | |
| temperature range [°C] | 0…+100 |
| temperature resolution every … [°C] | 0,1 |
| temperature variation at 25°C and 60%rH [+/-°C]* | 2,0 |
| temperature protection | class 3.3 to DIN 12880 |
| relative humidity range [%] | 10…90 (see chart for details) |
| humidity resolution every … [%] | 1,0 |
| humidity variation at 25°C and 60% rH [%rH] | 5,0 |
| CHAMBER | |
| door type | double (external solid, internal glass) / external glass (option) |
| interior | |
| Smart PRO | acid-proof stainless steel to DIN 1.4301 |
| IG Smart PRO | acid-proof stainless steel to DIN 1.4301 |
| housing | |
| Smart PRO | powder coated sheet |
| IG Smart PRO | stainless steel linen finish |
| overall dims [mm] /1/ | |
| width A | 670 |
| height B | 1340 |
| depth C | 820 |
| internal dims [mm] | |
| width D | 460 |
| height E | 530 |
| depth F | 440 |
 |
|
| shelves (standard | max) | 2 | 7 |
| max shelf workload [kg] /2/ | 10 |
| – reinforced shelf version (PW) [kg] /3/ | 50 |
| max unit workload [kg] | 60 |
| weight [kg] | 122 |
| ELECTRICAL PARAMETERS | |
| voltage** | 230V 50-60Hz |
| nominal power [W] | 2900 |
| refrigerant | R1234ze / GWP=1 |
| warranty | 24 months |
| manufacturer | POL-EKO |
all the above technical data refer to standard units (without optional accessories) and without a reverse osmosis system
* – variation (K) calculated for chamber as: K= +/- (T average max. – T average min.) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
 |
