GRANT RTS-1 - Personlig bioreaktor med eller utan kylning

Description

GRANT RTS-1 – Personlig bioreaktor med eller utan kylning

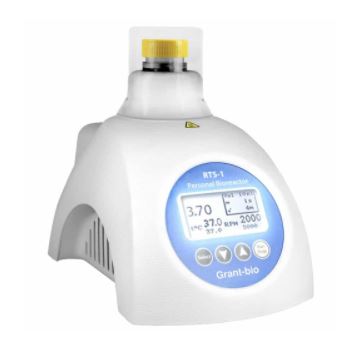

The Grant-bio RTS-1 is personal bioreactor which provides “Reverse-Spin” type of agitation and logging of microbial growth in 50 ml tubes in real time.

RTS-1 including TubeSpin® Bioreactor 50, TPP®, 20 pcs.

Features

Innovative mixing due to reverse spinning of the sample around its own axis
Due to innovative mixing technology it is possible to measure optical density of the probe in real time
Store, display and analyse the data in real time
Compact device with low profile and small footprint for personal application
Temperature control allows use as an incubator, e.g. for cell growth
The ability to change parameters such as temperature, RPM and “Reverse-Spin” frequency, allows to achieve consistency and reproducibility of results
Programmable Cycling/profiling of cultivation parameters such as temperature, RPM, “Reverse-Spin” frequency
The ability to remotely monitor the process of cultivation while home or using a mobile phone

Software features

Real–Time cell growth logging
3D graphical representation of OD or growth rate over time over unit
Pause option
Save/Load option
Report option: PDF and Excel
Connect up to 12 units simultaneously to 1 computer
Remote monitoring option (requires internet connection)
Cycling/Profiling options
User calibration options for any microorganism

Applications

Bacterial cultivation with real time growth kinetics
Strain screening
Temperature stress and fluctuation experiments
Media screening and optimization
Synthetic and systems biology
Inhibition and toxicity tests

GRANT RTS-1 – Personal bioreactor with or without cooling

Specifications

Dimensions (h x d x w)	200 x 212 x 130
Theoretically possible measurement range in OD850 , at 10 ml working volume*: Rod shaped bacteria	0-25 (0–45.6 OD600 equivalent**)
Theoretically possible measurement range in OD850 , at 10 ml working volume*: Yeast	0-50 (0–75 OD600 equivalent)
E.coli BL21 Factory calibration measurement range, in OD850 : at 10–20 ml volume	0 – 10 OD (0 – 19 OD600 equivalent)
E.coli BL21 Factory calibration measurement range, in OD850 : at 20–30 ml volume	0 – 8 OD (0 – 15.2 OD600 equivalent)
Measurement wavelength (λ)	850 ± 15nm
Factory calibration measurement precision	±0.3 OD 850
Mass transfer coefficient kLa	Up to 350 ± 26 h-1 at 5ml (h-1)
Light source	LED (NIR Light diode)
Temperature setting range	+25 to 70°C (increment 0.1°C)
Bottom control range point	Ambient +5°C
Top control range point	70°C
Temperature stability	±0.1°C
Sample temperature accuracy:	20 °C – 45°C: ±1, < 20°C: ±2, ±3 > 45°C
Sample temperature heating/cooling rate	0.7°C/min
Sample volume	5 – 30ml
Speed control range	50 – 2,000rpm (increment 10 rpm)
Speed control precision	±15rmp
Reverse Spin Time	1- 60 seconds (increment 1s)
Display	LCD
Minimum PC requirements	Intel/AMD Processor, 1 GB RAM, Windows XP***/Vista/7/8/8.1/10, 2.0 USB port
Optimal PC requirements	Intel/AMD Processor, 3 GB RAM, Windows 7/8/8.1/10, 2.0 USB port
Power consumption	40W (3.3A)
Input voltage	12V dc
Nominal operating voltage	120 – 230V (50/60Hz)
Weight	1.7kg

	GRANT RTS-serien – Produktblad
	Grant Instruments – Produktkatalog
