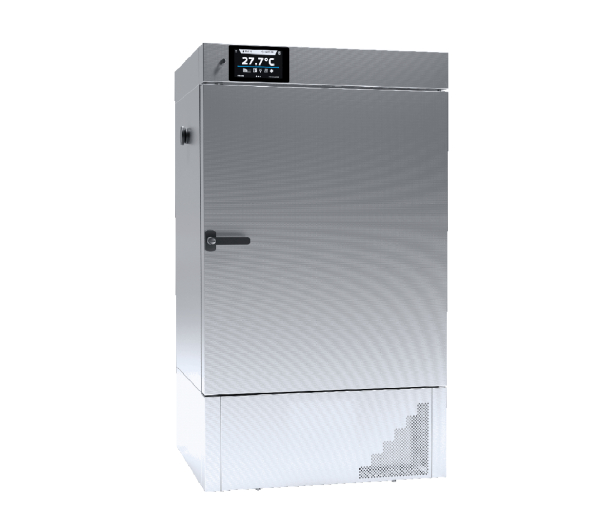

ILW240 SMART - Refrigerated incubator, 245 liters

Description

ILW240 SMART – Refrigerated incubator volume 245 liters

Standard equipment ILW 240

temperature range 0…+70°C / -10 (option) / … +100°C (Smart PRO)
chamber capacity 245 liters
working capacity 245 liters
instruction manual and menu in different languages
over temperature protection 2.0 class (Smart), 3.3 class (Smart PRO) according to DIN 12880
open by alarm
beavers
LAN port and USB port
access port to enter an external sensor (Ø30 mm) on the left side of the unit
by lock
Stainless steel wire shelf (INOX)

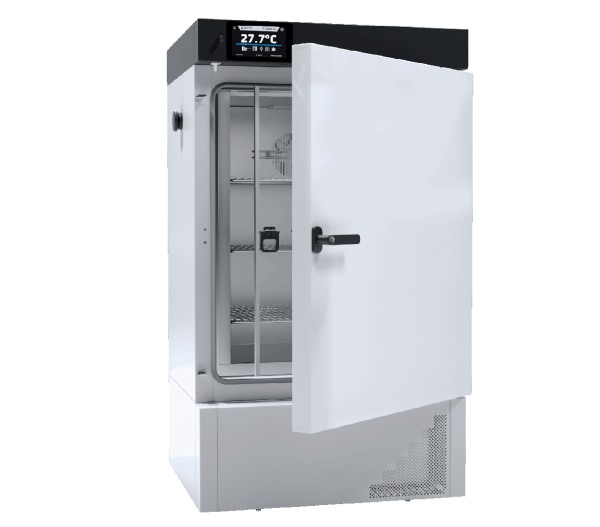

double doors (external full, internal glass)
Wi-Fi communication (only Smart PRO)
LAN cable (only Smart PRO)
LabDesk software for, inter alia, downloading data on computer (only Smart PRO, for Smart version – optional)
available controllers: Smart or Smart PRO

FOT – photoperiodic system – day and night simulation

FIT – phytotron system – day and night simulation with intensity control

Smart options

	Order number: */A	door with viewing window
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls



	Order number: *PLUS	Automatic defrosting function
	Order number: */T	Low temperature version
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order number: */FOT	Photoperiodic system
	Order number: GNZ	Internal socket
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.3	Over temperature protection 3.3 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Smart PRO options

	Order number: */A	door with viewing window
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: *PLUS	Automatic defrosting function
	Order number: */T	Low temperature version
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order number: */FIT	Phytotron system
	Order number: FIT/R3	FIT panels independent control
	Order number: PT 100	Additional temperature sensor
	Order number: GNZ	Internal socket
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control
	Order number: CCTV	Camera inside the chamber
	Order number: CCTV CAM	Additional camera

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	245
working capacity [l]	245
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+70 / -10…+70 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 2.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	820
height B	1430
depth C	780
internal dims [mm]
width D	600
height E	800
depth F	510

shelves (standard \| max)	3 \| 10
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	90
– reinforced unit version (W) [kg] /4/	300
weight [kg]	140
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	900
refrigerant	R290 / GWP=3
warranty	24 months

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	245
working capacity [l]	245
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+100 / -10…+100 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart PRO	acid-proof stainless steel to DIN 1.4301
IG Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
Smart PRO	powder coated sheet
IG Smart PRO	stainless steel linen finish
overall dims [mm] /1/
width A	820
height B	1430
depth C	780
internal dims [mm]
width D	600
height E	800
depth F	510

shelves (standard \| max)	3 \| 10
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	90
– reinforced unit version (W) [kg] /4/	300
weight [kg]	140
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	900
refrigerant	R290 / GWP=3
warranty	24 months

	Produktblad – Kylinkubator Pol-Eko ILW240 SMART
	Produktblad – Kylinkubator Pol-Eko ILW240 SMART PRO

	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
