Name: STP 4 SMART, SMART PRO - Peltier Cooled Incubator, 250 Liter - LabTeamet
SKU: PE-STP-4

Beskrivning

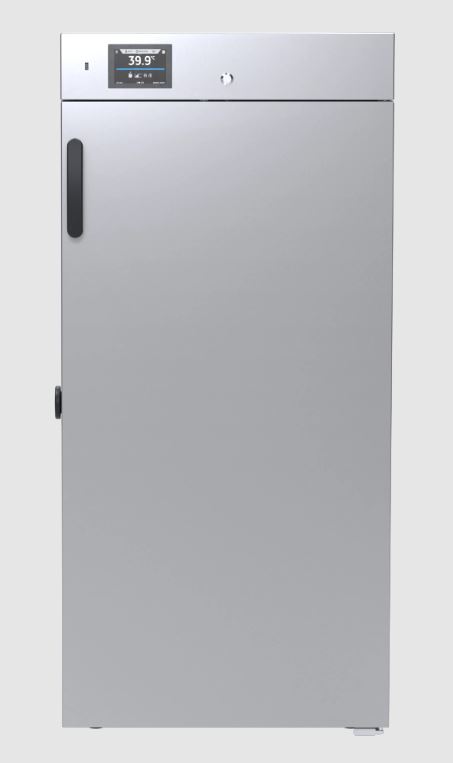

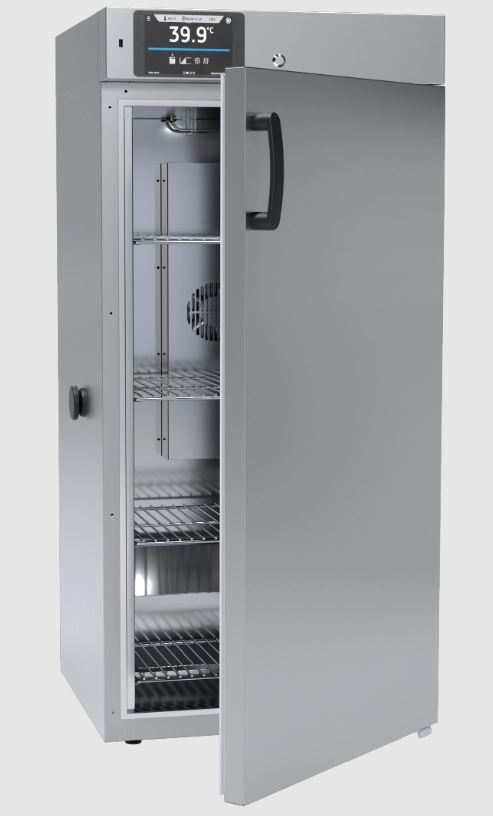

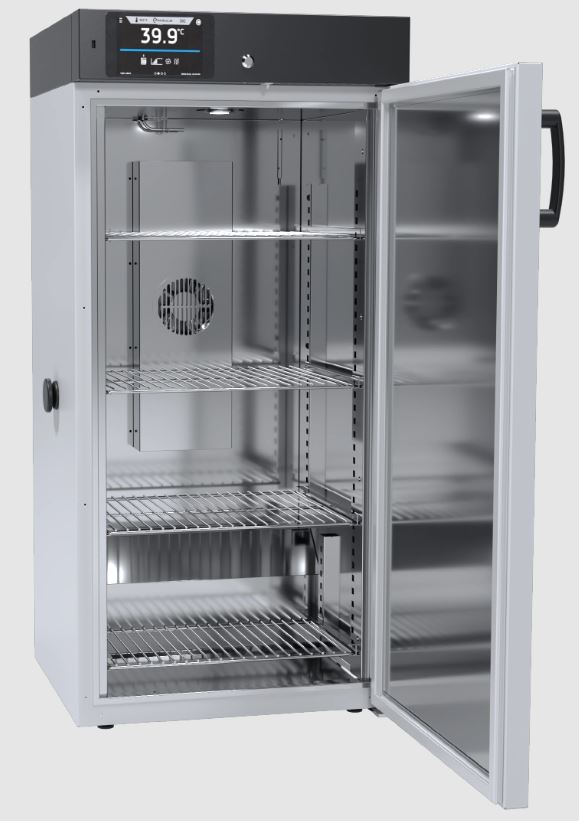

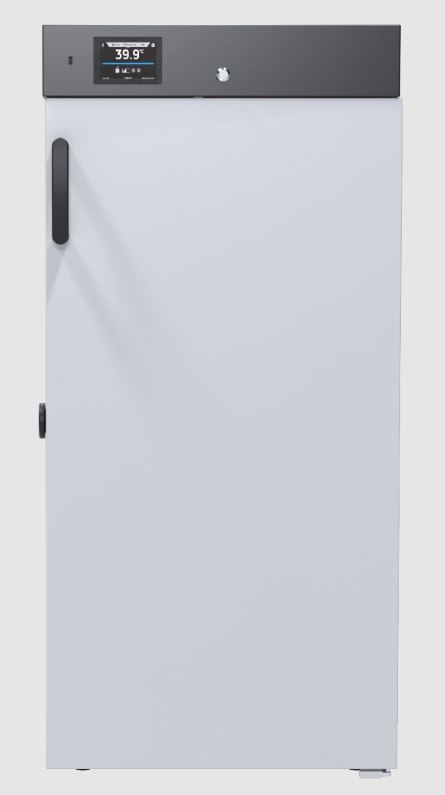

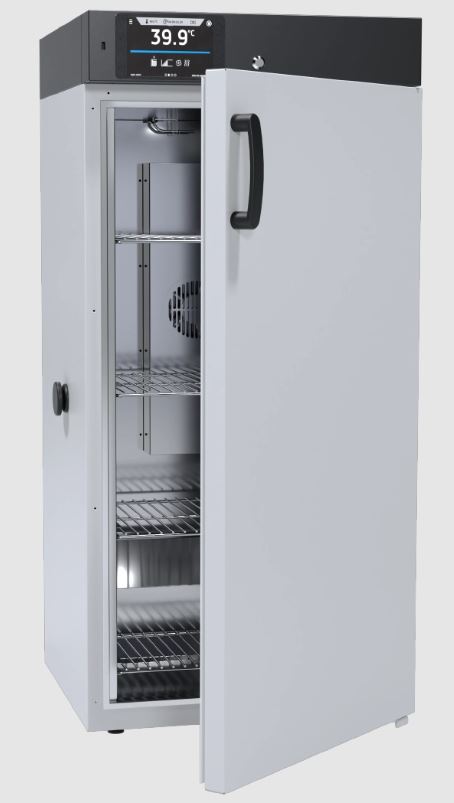

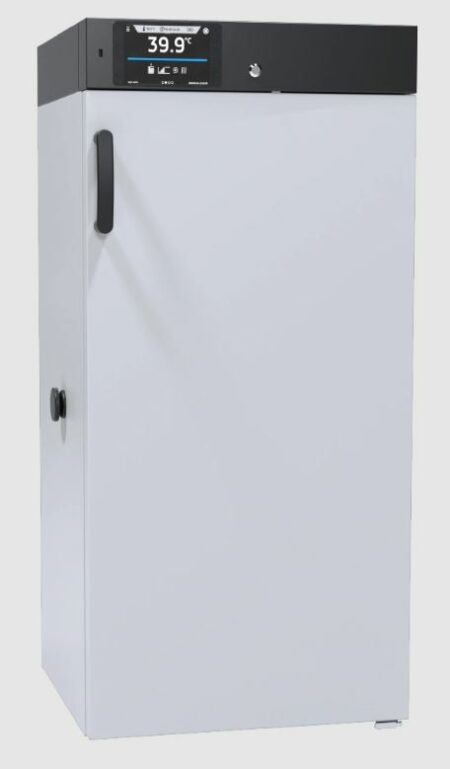

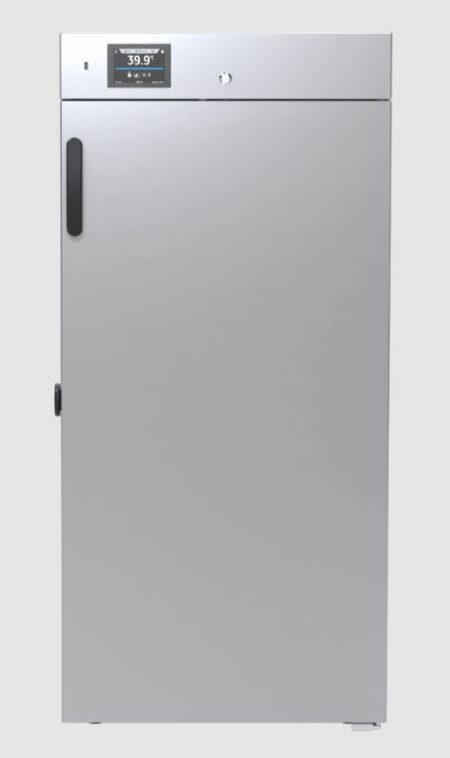

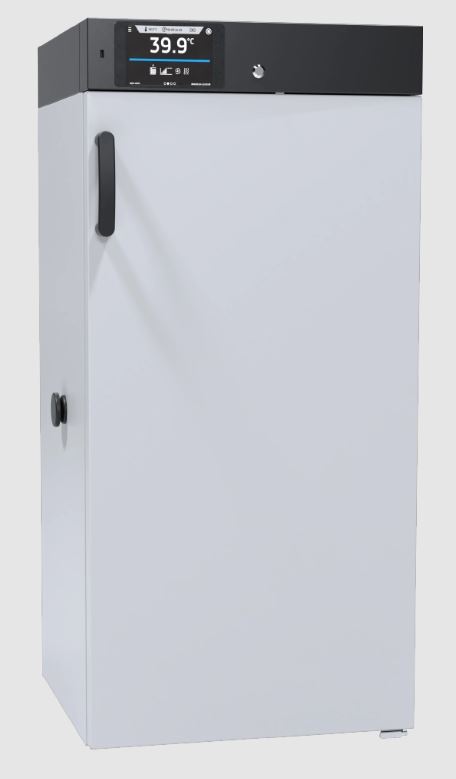

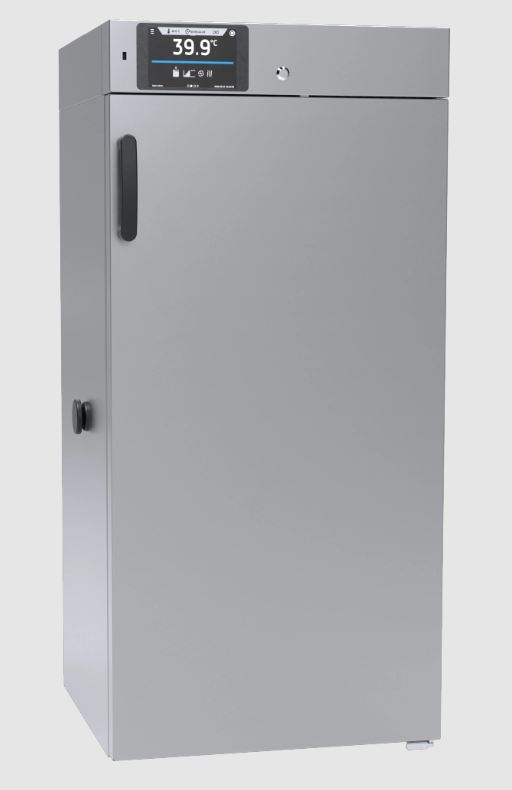

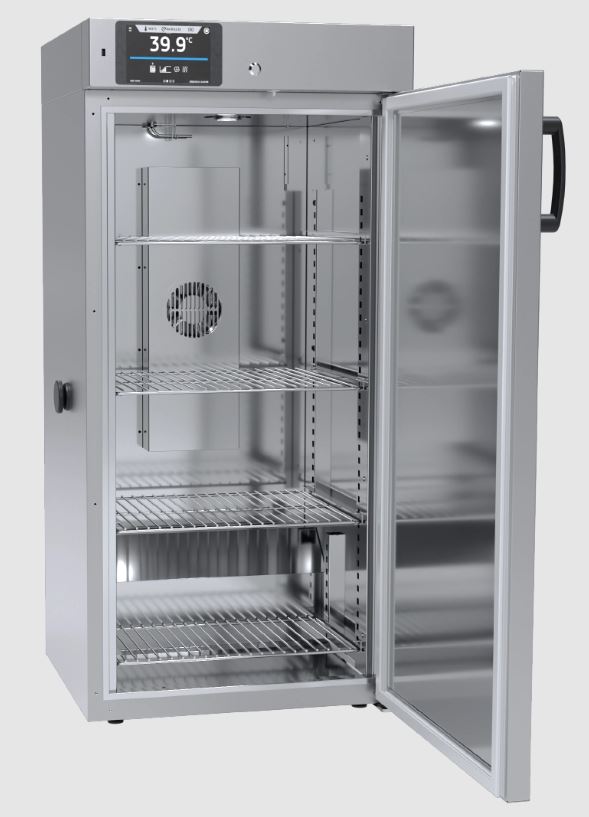

STP 4 SMART, SMART PRO – Peltier Cooled Incubator, 250 Liter

Standard equipment of STP 4

temperature range +3…+70°C
chamber capacity 250 liters
working capacity 203 liters
quality control protocol (in +37°C)
instruction manual in English and menu in various languages
Over temperature protection 1.0 class (according to DIN 12880) for models C (comfort), 2.0 for models P (premium) and 3.3 class in Smart PRO
open door alarm
LAN port and USB port
internal LED light
access port to enter an external sensor (Ø30 mm) on the left side of the unit
door lock
stainless steel wire shelves (INOX) for models C (comfort) and P (premium)
full external doors
WiFi communication (only Smart Pro)
LAN cable (only Smart Pro)
LabDesk software for, inter alia, downloading data to computer (only Smart Pro, for Smart version – optional)
available models: C (comfort), P (premium)
available controllers: Smart and Smart PRO

Options Smart		Options Smart PRO
Order number: */C	Internal glass door	Order number: */C	Internal glass door
Order number: */P INOX	Stainless steel wire shelf INOX	Order number: */P INOX	Stainless steel wire shelf INOX
Order number: */PP	Perforated shelf	Order number: */PP	Perforated shelf
Order number: */PW	Reinforced shelf	Order number: */PW	Reinforced shelf
Order number: KUW GN/	Stainless steel cuvettes	Order number: KUW GN/	Stainless steel cuvettes
Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides	Order number: ST/CHL/SWP ALU	Aluminum drawer with powder coated slides
Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides	Order number: ST/CHL/SWP INOX	Stainless steel drawer with powder coated slides
Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides	Order number: ST/CHL/SWPN INOX	Stainless steel drawer with stainless steel slides
Order number: QLK*	Castors	Order number: QLK*	Castors
Order number: *PLUS	Automatic defrosting function	Order number: *PLUS	Automatic defrosting function
Order number: ST/70	Extended temperature range to 70°C	Order number: PT 100	Additional temperature sensor
Order number: */FOT	Photoperiodic system	Order number: GNZ	Internal socket
Order number: GNZ	Internal socket	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
Order numberLabDesk	LabDesk software	Order number: BPP 12	Battery backup for display
Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification	Order number: PORT ALARM	Dry alarm contact
Order number: */3.3	Over temperature protection 3.3 class according to DIN 12880	Order number: LANK	LAN cable
Order number: BPP 12	Battery backup for display	Order number: OCZ/20	Non-standard access port 20 mm
Order number: PORT ALARM	Dry alarm contact	Order number: OCZ/30	Additional access port 30 mm
Order number: LANK	LAN cable	Order number: OCZ/60	Non-standard access port 60 mm
Order number: OCZ/20	Non-standard access port 20 mm	Order number: OCZ/100	Non-standard access port 100 mm
Order number: OCZ/30	Additional access port 30 mm	Order number: KD	Access control
Order number: OCZ/60	Non-standard access port 60 mm
Order number: OCZ/100	Non-standard access port 100 mm

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	250
working capacity [l]	203
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+40 / +70 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 1.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	pełne / podwójne/5/ (opcja)
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished

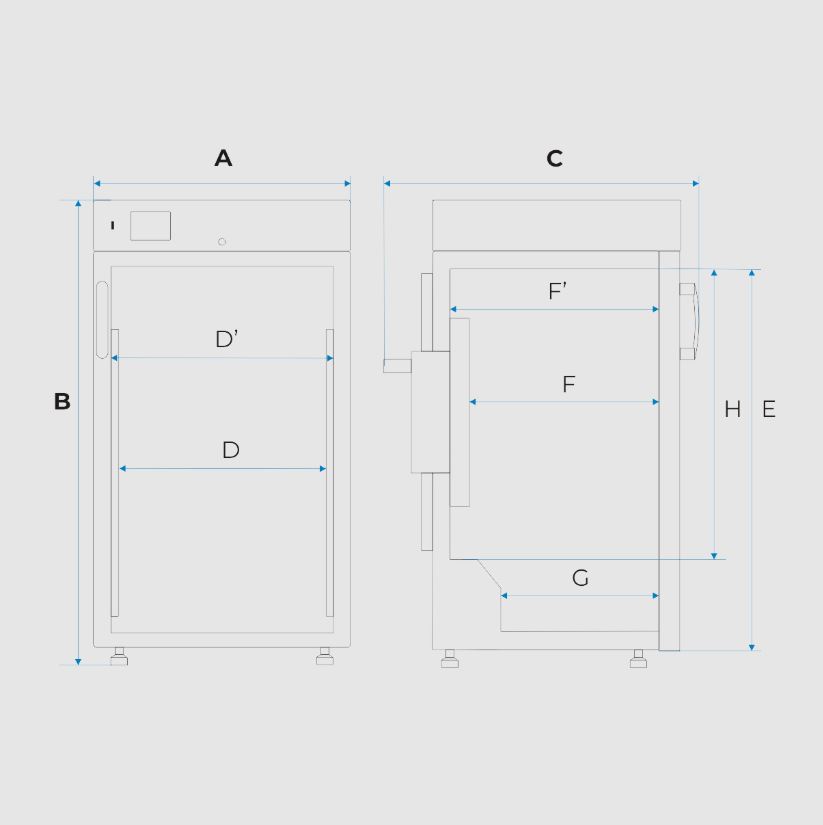

overall dims [mm] /1/
width A	600
height B	1300
depth C	815
internal dims [mm]
width D	480
width D’	520
height E	1060
depth F	420
depth F’	480
depth G	320
height H	840

shelves (standard \| max)	4 \| 6
max shelf workload [kg] /2/	10
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
Energy consumption at 37°C [Wh/h]	1,7
voltage	230V 50-60Hz
nominal power [W]	250
warranty	24 months
manufacturer	POL-EKO^®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	250
working capacity [l]	203
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+70
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	pełne / podwójne/5/ (opcja)
interior
C Smart PRO	stainless steel to DIN 1.4016
CS Smart PRO	stainless steel to DIN 1.4016
P Smart PRO	acid-proof stainless steel to DIN 1.4301
PS Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
C Smart PRO	powder coated sheet
CS Smart PRO	stainless steel polished
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	600
height B	1300
depth C	815
internal dims [mm]
width D	480
width D’	520
height E	1060
depth F	420
depth F’	480
depth G	320
height H	840

shelves (standard \| max)	4 \| 6
max shelf workload [kg] /2/	10
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
Energy consumption at 37°C [Wh/h]	1,7
voltage	230V 50-60Hz
nominal power [W]	250
warranty	24 months
manufacturer	POL-EKO^®
