Eppendorf – Cell Culture Plates

Experience unprecedented convenience and safety for your plate–based cell culture experiments. Eppendorf Cell Culture Plates are available in 6–well to 96–well formats with TC treated or non–treated surfaces.
Keep your cells warm outside the incubator, avoid the edge effect and use more wells.Eppendorf Cell Culture Plates are designed for expansion of smaller cell numbers and for cell-based assays.The chimney-well design avoids inhomogeneous growth of cells in the outer ring of wells which reduces costs and increases efficiency. If cells need to spend more time outside of the incubator, filling the inter-well spaces of the plate will keep the temperature stable and prevent unwanted temperature shifts. We optimized the optical performance by enhancement of the planarity, material clarity, and reduction of the liquid meniscus to facilitate both manual and automated read-out.

Improved assay results

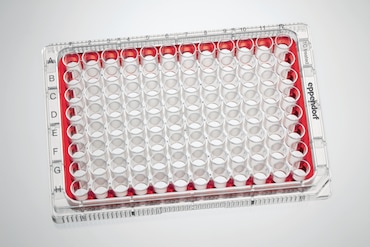

The outer moat of the 96-well plate can be filled with liquid due to the innovative new chimney-well design of the plates. Thus inhomogeneous assay results due to the ”edge effect” can be minimized.

Eppendorf Cell Culture Plates

Optimized microscopical performance

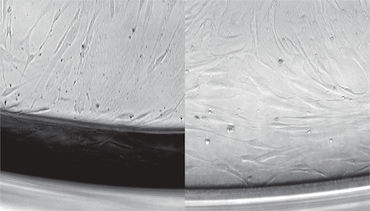

The enhancement of the planarity, superior material clarity and reduction of the menicus of liquids in the wells facilitate every step where manual or automated read-out is necessary. Shadow interference in imaging area is significantly reduced a shown in comparison to a competitor plate.

Eppendorf Cell Culture Plates

Safe handling

A pronounced corrugation of the plate lid and a smaller lid makes working with Eppendorf Cell Culture Plates extremely comfortable and safe.

Eppendorf Cell Culture Plates


Eppendorf – Cell Culture Plates



Cell Culture Plate, 6-Well Cell Culture Plate, 12-Well Cell Culture Plate, 24-Well Cell Culture Plate, 48-Well Cell Culture Plate, 96-Well
Material polystyrene polystyrene polystyrene polystyrene polystyrene
Number of wells 6 wells 12 wells 24 wells 48 wells 96 wells
Packing 60 plates, individually wrapped 60 plates, individually wrapped 60 plates, individually wrapped 60 plates, individually wrapped 80 plates, individually wrapped
Purity grade(s) Sterile, pyrogen-, DNase-, RNase-, human and bacterial DNA-free. Non-cytotoxic Sterile, pyrogen-, DNase-, RNase-, human and bacterial DNA-free. Non-cytotoxic Sterile, pyrogen-, DNase-, RNase-, human and bacterial DNA-free. Non-cytotoxic Sterile, pyrogen-, DNase-, RNase-, human and bacterial DNA-free. Non-cytotoxic Sterile, pyrogen-, DNase-, RNase-, human and bacterial DNA-free. Non-cytotoxic
Volume range 5 mL 2 mL 1 mL 0.5 mL 0.2 mL
Dimensions (W × D × H) 127.8 × 85.5 × 20.0 mm 127.8 × 85.5 × 20.0 mm 127.8 × 85.5 × 20.0 mm 127.8 × 85.5 × 20.0 mm 127.8 × 85.5 × 14.4 mm
Theoretical total volume 16 mL 6.8 mL 3.6 mL 1.5 mL 0.4 mL
Working volume 3 – 5 mL 1 – 2 mL 0.5 – 1 mL 0.3 – 0.5 mL 0.1 – 0.2 mL
Growth area/well1 940.3 mm² 391.1 mm² 208.9 mm² 85.6 mm² 37.0 mm²
Well diameter 34.6 mm 22.4 mm 16.2 mm 10.4 mm 6.8 mm
Height with lid 23.2 mm 23.2 mm 23.2 mm 23.2 mm 17.6 mm
Dimensions Conforms to ANSI/SBS I Conforms to ANSI/SBS I Conforms to ANSI/SBS I Conforms to ANSI/SBS I Conforms to ANSI/SBS I to V
Centrifugation Can be centrifuged up to 2500 × g. When stacked (up to 5 for 96-Well plates and up to 4 for all other formats) can be centrifuged up to 300 × g. Can be centrifuged up to 2500 × g. When stacked (up to 5 for 96-Well plates and up to 4 for all other formats) can be centrifuged up to 300 × g. Can be centrifuged up to 2500 × g. When stacked (up to 5 for 96-Well plates and up to 4 for all other formats) can be centrifuged up to 300 × g. Can be centrifuged up to 2500 × g. When stacked (up to 5 for 96-Well plates and up to 4 for all other formats) can be centrifuged up to 300 × g. Can be centrifuged up to 2500 × g. When stacked (up to 5 for 96-Well plates and up to 4 for all other formats) can be centrifuged up to 300 × g.
1For the initial seeding of cells, take into account the growth area in order to support optimal cell growth.
